Products

  • 75% Ferrosilicon
  • High Carbon Ferrochrome
  • Low Carbon Ferrochrome
    • .05 / .10 / .025
  • High Carbon Ferromanganese
  • Medium Carbon Ferromanganese
  • Low Carbon Ferromanganese
  • Electrolytic Manganese
  • Silicomanganese
  • Ferro Moly
  • Moly Oxide
  • Ferro Boron
  • Ferro Niobium
  • Ferro Phosphorous
  • Ferro Tungsten

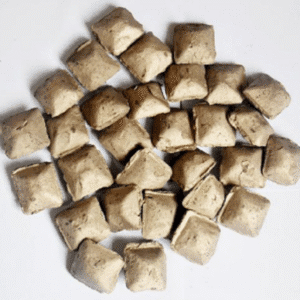

  • Ferro Vanadium / VCN 12 and 16
  • Ferro Titanium

Inoculants

  • Calcium Silicon (CaSi)
  • Ferro Silicon (FeSi)
  • Nodulizer Cored Wire
  • Ferro Silicon Zirconium (FeSiZr)
  • Ferro Silicon Barium (FeSiBa)
  • Ferro Silicon Barium Calcium (FeSiBaCa)
  • Ferro Silicon Barium Aluminum (FeSiBaAl)
  • Ferro Silicon Barium Zirconium (FeSiBaZr)
  • Ferro Silicon Barium Manganese (FeSiBaMn)
  • Calcium Barium Aluminum (CaBaAl)
  • Calcium Iron Manganese (CaFeMn)
  • Calcium Iron Aluminum (CaFeAl)
  • Silicon Carbide (SiC)
  • Ferro Silicon Strontium (FeSiSr)
  • Anti-Veining

Nodulizers

  • Ferro Silicon Magnesium (FeSiMg)
  • Nickel-Magnesium
  • Rare Earth Magnesium Alloy
  • Yttrium Rare Earth Nodulizer
Product Name Size Standard Key Advantages Main Applications
Semi-coke (Large) 32–60mm DB61/T 362–2016 Grade 1: Moisture ≤14%, Fixed Carbon ≥87%,
Volatile Matter ≤4%, Ash ≤7%		 Metallurgy, Fertilizer Gas Production, Civil Fuel
Semi-coke (Medium) 18–32mm DB61/T 362–2016 Grade 1: Moisture ≤15%, Fixed Carbon ≥86%,
Volatile Matter ≤5%, Ash ≤7%		 Calcium Carbide, Reductant for Ferrosilicon Smelting
Semi-coke (Small) 8–18mm DB61/T 362–2016 Grade 1: Moisture ≤16%, Fixed Carbon ≥85%,
Volatile Matter ≤5%, Ash ≤7%		 Reductant for Ferrosilicon Smelting
Coke Breeze 0–8mm Q/YJY 07–2022 Moisture ≤16%, Fixed Carbon ≥79%,
Volatile Matter ≤10%, Ash ≤10%		 Blast Furnace Injection for Steelmaking, Sintering Raw Material
Download our Graphite Electrode Catalog (PDF)
Properties Unit High Power (75–550) Super High Power (350–500) Ultra High Power (350–800)
Resistivity Electrode
μΩ·m		 5.8~7.0 5.5~6.5 4.0~5.5
Nipple 3.5~5.0 3.2~4.5 2.8~4.0
Bending Strength Electrode
MPa		 10.0~13.0 10.0~15.0 10.0~15.0
Nipple 18.0~22.0 20.0~25.0 20.0~30.0
Elastic Modulus Electrode
GPa		 10.0~12.0 10.0~14.0 12.0~16.0
Nipple 14.0~18.0 16.0~22.0 16.0~25.0
Bulk Density Electrode
g/cm³		 1.62~1.70 1.65~1.72 1.66~1.75
Nipple 1.75~1.80 1.78~1.82 1.80~1.90
Ash Content % 0.3 0.2 0.2
C.T.E. 100–600°C Electrode
×10⁻⁶/°C		 1.5~2.2 1.5~1.8 1.1~1.5
Nipple 1.0~1.4 1.0~1.4 0.5~1.2
Dia. (in) Dia. (mm) Wt. (kg)
3 75 7
4 100 16
5 1/8 130 33
6 150 45
7 175 59
8 200 76
9 225 100
10 250 120 / 155
12 300 185 / 230 / 253
14 350 305 / 406
16 400 334 / 395 / 505
18 450 585 / 665
20 500 617 / 717 / 824
22 550 873 / 995 / 1190
24 600 1350
26 650 1580
28 700 1840
30 725 1840
32 750 1840

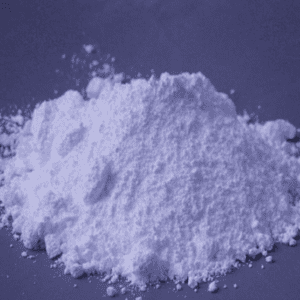

  • Molybdenum Concentrate

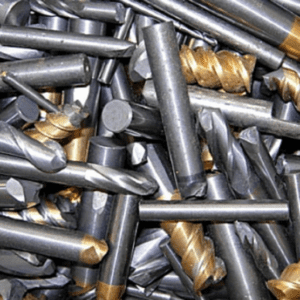

  • Tungsten Concentrate

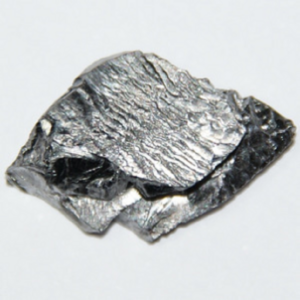

  • Tantalum Concentrate

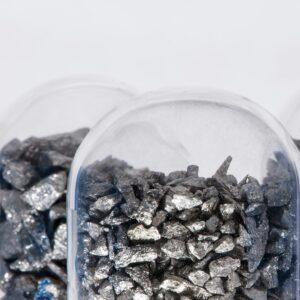

  • Niobium Concentrate

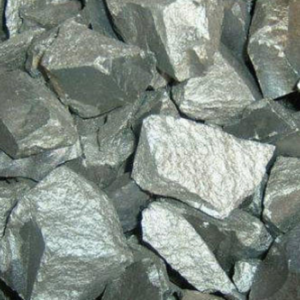

  • Chromium Concentrate

  • Manganese Concentrate
